Posted by Ian Lake, Developer Advocate
Android notifications are often a make-or-break interaction between your Android app and users. To provide a better user experience, notifications on Android N have received a visual refresh, improved support for custom views, and expanded functionality in the forms of Direct Reply, a new MessagingStyle, and bundled notifications.
Same notification, new look

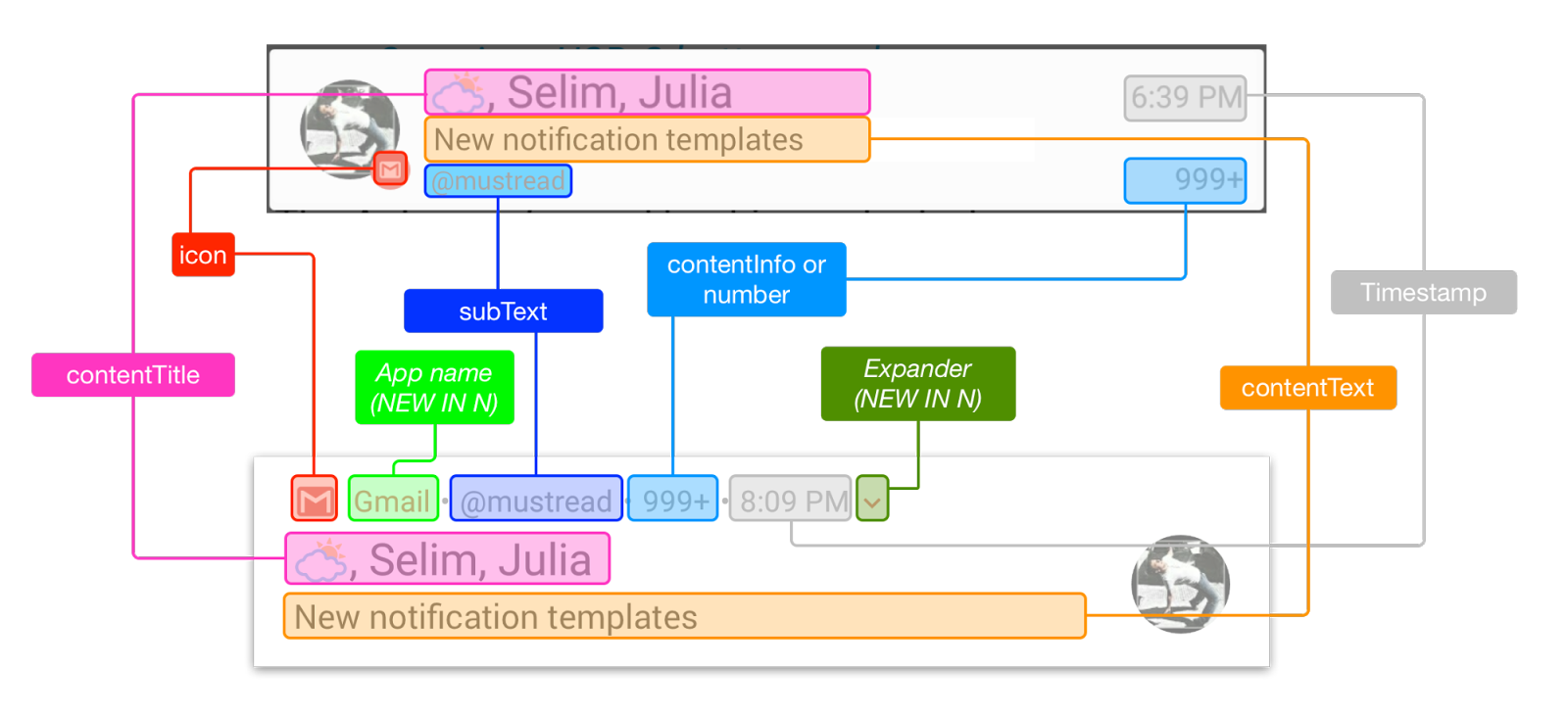

The first and most obvious change is that the default look and feel of notifications has significantly changed. Many of the fields that were spread around the notifications have been collapsed into a new header row with your app’s icon and name anchoring the notification. This change ensured that the title, text, and large icon are given the most amount of space possible and, as a result, notifications are generally slightly larger now and easier to read.
Given the single header row, it is more important than ever that the information there is useful. When you target Android N, by default the time will be hidden - if you have a time critical notification such as a messaging app, you can re-enable it with setShowWhen(true). In addition, the subtext now supersedes the role of content info and number: number is never shown on Android N devices and only if you target a previous version of Android and don’t include a subtext will content info appear. In all cases, ensure that the subtext is relevant and useful - don’t add an account email address as your subtext if the user only has one account, for example.
Notification actions have also received a redesign and are now in a visually separate bar below the notification.
You’ll note that the icons are not present in the new notifications; instead more room is provided for the labels themselves in the constrained space of the notification shade. However, the notification action icons are still required and continue to be used on older versions of Android and on devices such as Android Wear.
If you’ve been building your notification with
Better Support for Custom Views
If you’re instead building your notification from custom RemoteViews, adapting to any new style has been challenging. With the new header, expanding behavior, actions, and large icon positioning as separate elements from the main text+title of the notification, we’ve introduced a new DecoratedCustomViewStyle and DecoratedMediaCustomViewStyle to provide all of these elements, allowing you to focus only on the content portion with the new setCustomContentView() method.
This also ensures that future look and feel changes should be significantly easier to adapt to as these styles will be updated alongside the platform with no code changes needed on the app side.
Direct Reply
While notification actions have already been able to launch an Activity or do background work with a Service or BroadcastReceiver, Direct Reply allows you to build an action that directly receives text input inline with the notification actions.
Direct Reply uses the same
The RemoteInput itself contains information like the key which will be used to later retrieve the input and the hint text which is displayed before the user starts typing.
// Where should direct replies be put in the intent bundle (can be any string)
private static final String KEY_TEXT_REPLY = "key_text_reply";
// Create the RemoteInput specifying this key
String replyLabel = getString(R.string.reply_label);
RemoteInput remoteInput = new RemoteInput.Builder(KEY_TEXT_REPLY)
.setLabel(replyLabel)
.build();
Once you’ve constructed the RemoteInput, it can be attached to your Action via the aptly named setAllowGeneratedReplies(true) to enable
// Add to your action, enabling Direct Reply for it
NotificationCompat.Action action =
new NotificationCompat.Action.Builder(R.drawable.reply, replyLabel, pendingIntent)
.addRemoteInput(remoteInput)
.setAllowGeneratedReplies(true)
.build();
Keep in mind that the pendingIntent being passed into your Action should be an Activity on Marshmallow and lower devices that don’t support Direct Reply (as you’ll want to dismiss the lock screen, start an Activity, and focus the input field to have the user type their reply) and should be a Service (if you need to do work on a separate thread) or BroadcastReceiver (which runs on the UI thread) on Android N devices so as the process the text input in the background even from the lock screen. (There is a separate user control to enable/disable Direct Reply from a locked device in the system settings.)
Extracting the text input in your Service/BroadcastReceiver is then possible with the help of the
private CharSequence getMessageText(Intent intent) {
Bundle remoteInput = RemoteInput.getResultsFromIntent(intent);
if (remoteInput != null) {
return remoteInput.getCharSequence(KEY_TEXT_REPLY);
}
return null;
}
After you’ve processed the text, you must update the notification. This is the trigger which hides the Direct Reply UI and should be used as a technique to confirm to the user that their reply was received and processed correctly.
For most templates, this should involve using the new setRemoteInputHistory() method which appends the reply to the bottom of the notification. Additional replies should be appended to the history until the main content is updated (such as the other person replying).
However, if you’re building a messaging app and expect back and forth conversations, you should use MessagingStyle and append the additional message to it.
MessagingStyle
We’ve optimized the experience for displaying an ongoing conversation and using Direct Reply with the new MessagingStyle.
This style provides built-in formatting for multiple messages added via the addMessage() method. Each message supports passing in the text itself, a timestamp, and the sender of the message (making it easy to support group conversations).
builder.setStyle(new NotificationCompat.MessagingStyle("Me")
.setConversationTitle("Team lunch")
.addMessage("Hi", timestampMillis1, null) // Pass in null for user.
.addMessage("What's up?", timestampMillis2, "Coworker")
.addMessage("Not much", timestampMillis3, null)
.addMessage("How about lunch?", timestampMillis4, "Coworker"));
You’ll note that this style has first-class support for specifically denoting messages from the user and filling in their name (in this case with “Me”) and setting an optional conversation title. While this can be done manually with a BigTextStyle, by using this style Android Wear 2.0 users will get immediate inline responses without kicking them out of the expanded notification view, making for a seamless experience without needing to build a full Wear app.
Bundled Notifications
Once you’ve built a great notification by using the new visual designs, Direct Reply, MessagingStyle, and
If you’ve built
It is important to also create a summary notification. This summary notification, denoted by
To improve the overall user experience on Android N devices, posting 4 or more notifications without a group will cause those notifications to be automatically bundled.
N is for Notifications
Notifications on Android have been a constant area of progressive enhancement. From the single tap targets of the Gingerbread era to expandable notifications, actions, MediaStyle, and now features such as Direct Reply and bundled notifications, notifications play an important part of the overall user experience on Android.
With many new tools to use (and
Follow the
